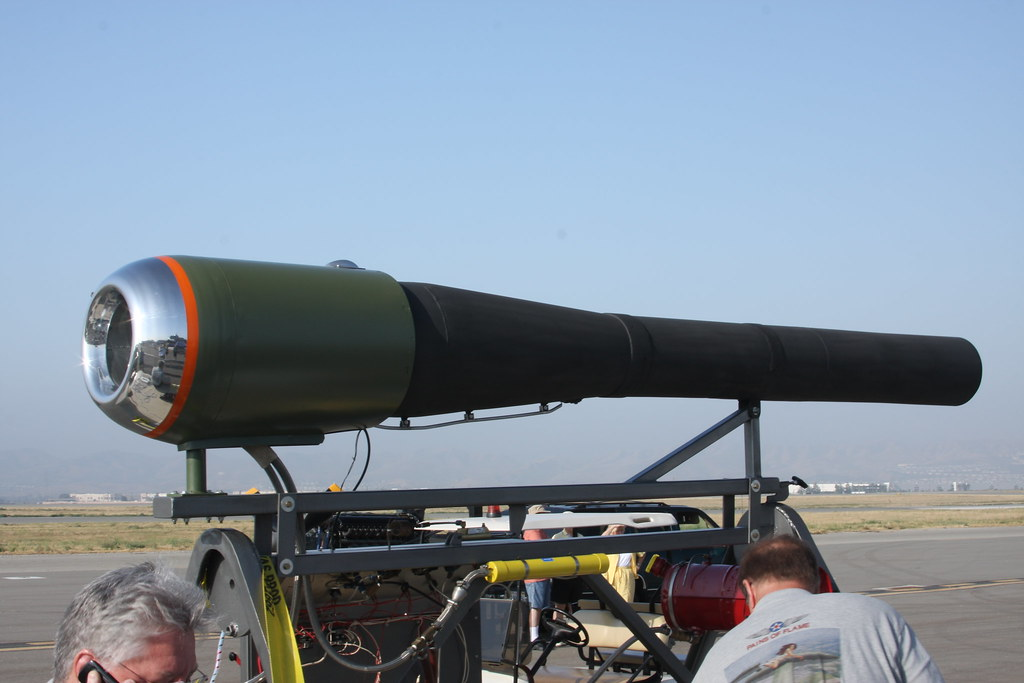

THE HISTORY OF THE PULSEJET
The pulsejet is unlike any other jet engine seen before. Some versions require no moving parts, a title only previously given to rockets, which were inefficient and expensive, and ramjets, which needed to go obscene speeds to function.
Pulsejet engines are characterized by simplicity, low cost of construction, and high noise levels. While the thrust-to-weight ratio is excellent, thrust specific fuel consumption is very poor. The pulsejet uses the Lenoir cycle, which, lacking an external compressive driver such as the Otto cycle's piston, or the Brayton cycle's compression turbine, drives compression with acoustic resonance in a tube. This limits the maximum pre-combustion pressure ratio, to around 1.2 to 1.
This is shown in my fuel injection system for my ongoing diy project on my other website:
The high noise levels usually make them impractical for other than military and other similarly restricted applications. However, pulsejets are used on a large scale as industrial drying systems, and there has been a resurgence in studying these engines for applications such as high-output heating, biomass conversion, and alternative energy systems, as pulsejets can run on almost anything that burns, including particulate fuels such as sawdust or coal powder.
Valveless pulsejet engines have no moving parts and use only their geometry to control the flow of exhaust out of the engine. Valveless pulsejets expel exhaust out of both the intakes and the exhaust, but the majority of the force produced leaves through the wider cross section of the exhaust. The larger amount of mass leaving the wider exhaust has more inertia than the backwards flow out of the intake, allowing it to produce a partial vacuum for a fraction of a second after each detonation, reversing the flow of the intake to its proper direction, and therefore ingesting more air and fuel. This happens dozens of times per second.
The valveless pulsejet operates on the same principle as the valved pulsejet, but the 'valve' is the engine's geometry. Fuel, as a gas or atomized liquid spray, is either mixed with the air in the intake or directly injected into the combustion chamber. Starting the engine usually requires forced air and an ignition source, such as a spark plug, for the fuel-air mix. With modern manufactured engine designs, almost any design can be made to be self-starting by providing the engine with fuel and an ignition spark, starting the engine with no compressed air. Once running, the engine only requires input of fuel to maintain a self-sustaining combustion cycle.
The combustion cycle comprises five or six phases depending on the engine: Induction, Compression, (optional) Fuel Injection, Ignition, Combustion, and Exhaust.
Starting with ignition within the combustion chamber, a high pressure is raised by the combustion of the fuel-air mixture. The pressurized gas from combustion cannot exit forward through the one-way intake valve and so exits only to the rear through the exhaust tube.
The inertial reaction of this gas flow causes the engine to provide thrust, this force being used to propel an airframe or a rotor blade. The inertia of the traveling exhaust gas causes a low pressure in the combustion chamber. This pressure is less than the inlet pressure (upstream of the one-way valve), and so the induction phase of the cycle begins.
In the simplest of pulsejet engines this intake is through a venturi, which causes fuel to be drawn from a fuel supply. In more complex engines the fuel may be injected directly into the combustion chamber. When the induction phase is under way, fuel in atomized form is injected into the combustion chamber to fill the vacuum formed by the departing of the previous fireball; the atomized fuel tries to fill up the entire tube including the tailpipe. This causes atomized fuel at the rear of the combustion chamber to "flash" as it comes in contact with the hot gases of the preceding column of gas—this resulting flash "slams" the reed-valves shut or in the case of valveless designs, stops the flow of fuel until a vacuum is formed and the cycle repeats.
Valveless pulsejets come in a number of shapes and sizes, with different designs being suited for different functions. A typical valveless engine will have one or more intake tubes, a combustion chamber section, and one or more exhaust tube sections.
The intake tube takes in air and mixes it with fuel to combust, and also controls the expulsion of exhaust gas, like a valve, limiting the flow but not stopping it altogether. While the fuel-air mixture burns, most of the expanding gas is forced out of the exhaust pipe of the engine. Because the intake tube(s) also expel gas during the exhaust cycle of the engine, most valveless engines have the intakes facing backwards so that the thrust created adds to the overall thrust, rather than reducing it.
The combustion creates two pressure wave fronts, one traveling down the longer exhaust tube and one down the short intake tube. By properly 'tuning' the system (by designing the engine dimensions properly), a resonating combustion process can be achieved.
While some valveless engines are known for being extremely fuel-hungry, other designs use significantly less fuel than a valved pulsejet, and a properly designed system with advanced components and techniques can rival or exceed the fuel efficiency of small turbojet engines.
A properly designed valveless engine will excel in flight as it does not have valves, and ram air pressure from traveling at high speed does not cause the engine to stop running like a valved engine. They can achieve higher top speeds, with some advanced designs being capable of operating at Mach .7 or possibly higher.
The advantage of the acoustic-type pulsejet is simplicity. Since there are no moving parts to wear out, they are easier to maintain and simpler to construct.
