Making a High Voltage Generator which runs off a 9V battery

 This device is easily capable on sending hot arcs over 1cm, and is completely wireless. It runs on a normal 9V battery and is incredibly reliable, and waterproof. This post will show you the methods of making it.


To begin, you will need to heart of the system - a module that converts the 9v into a high voltage, low current output. The High Voltage Generator (HVG) can be bought from Amazon, thus saving the need for any complicated electronics.




The next item that's needed is a switch, or in my case, two switches. I used a toggle switch to arm the device for safety, and a press switch to momentarily send power to the HVG. Finally, as a personal touch, I used a 9v to wire adaptor to make battery changes easier - but this is purely optional.

To begin the build, you want to wire everything together. I like to use wire connector blocks, as they insulate all the connections. Below is the diagram, and below that is the schematic.




In real life, this wiring looks like this:

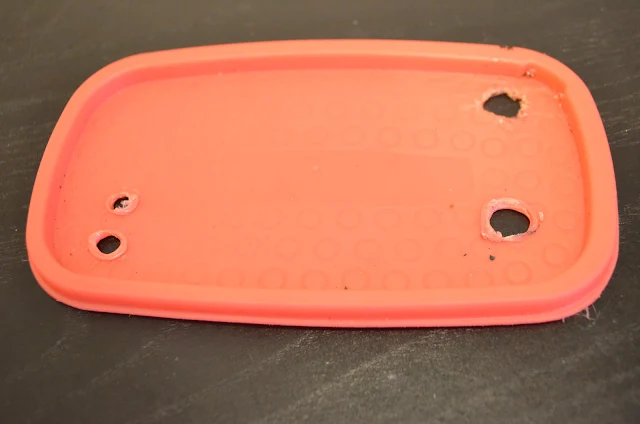

Then use a hot nail to make 4 holes in the top of a container

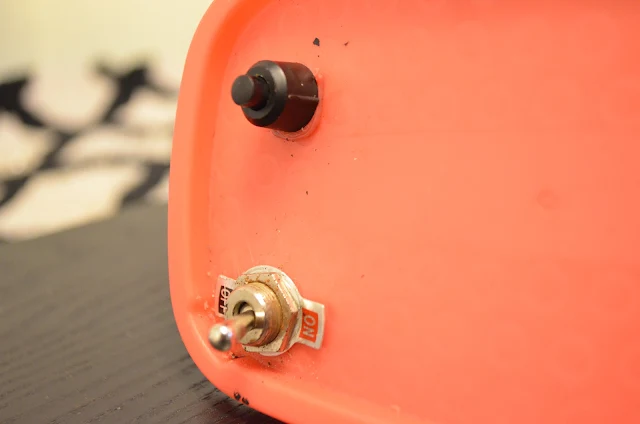

The larger holes accommodate the switches; the screws are tightened to secure the switches to the lid.

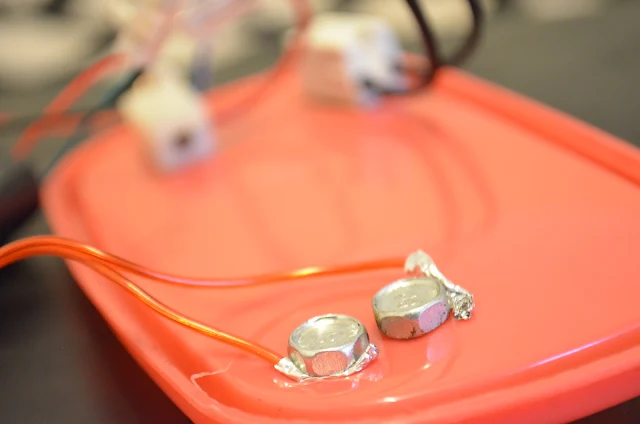

Next, you can insert the screws into the smaller holes. Wrap a bit of foil around the electrode output of the HVG and tighten the nut onto them to provide a firm connection, like so:


The contraption should now look like this:


To finish, simply close the lid of the container. To stop any rattling, I hot glued the battery and HVG to the floor of the container. The final product looks like this. The two metal sticks coming out the end are the electrodes to the 40kV output. To prevent burning out, I placed them close enough to arc between them. When a sparkplug is connected, this arcing will stop.
